Item No: HMT13
Frequency: 125KHz, 13.56Mhz, HID optional
Interface: Wiegand 26/34
Read range: 3~10cm
Package Size: 115mm×75.5mm×16.8mm
Color: Black
Working current: 100mAh
Power Consumed: DC6~14V
Reader card speed: 0.2/s
Product Description

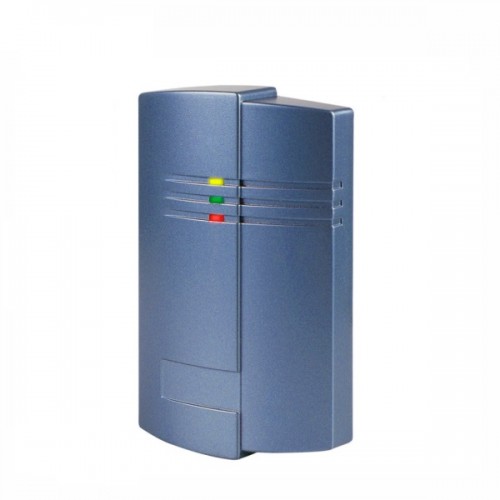

125khz.13.56mhz HID wiegand rfid access control reader
125khz,13.56MHZ, HID Contactless Waterproof Card Reader. Wiegand26/34 output
HMT13-E: 125KHz Proximity card reader
HMT13-M: 13.56MHz Mifare card reader
HMT13-HID: HID card reader
Features:
1. 125KHz Proximity /13.56MHz Mifare /HID Card Reader
2. Read Range: Up to 10CM(125KHz)/5CM(13.56MHz/HID)
3. 26/34bit Wiegand (default)
4. Easy to install on Metal Door Frame or Mullion
5. External LED Control
6. External Buzzer Control
7. Indoor / Outdoor Operation
8. Solid Epoxy Potted
9. Waterproof IP65
10. Reverse Polarity Protection

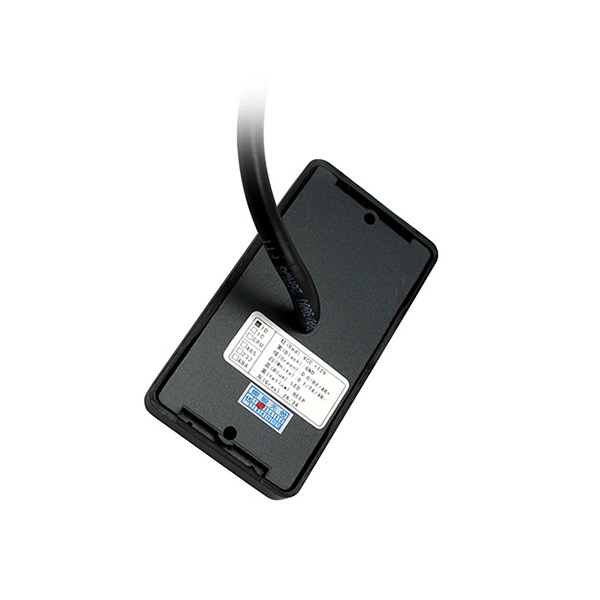

Wiring:
Red: Power 9-15V
Black: Power ground
Green: Wiegand output D0
White: Wiegand output D1
Blue: Green LED control
Yellow: Buzzer
