Item No: KR102E/KR102M
Frequency: 125KHz, 13.56Mhz optional
Interface: Wiegand
Size: 86*86*20mm
Material: ABS, PC
Color: Black
Working current: < 100mA
Product Description

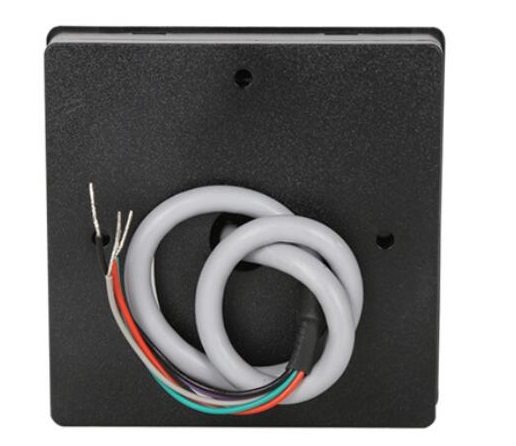

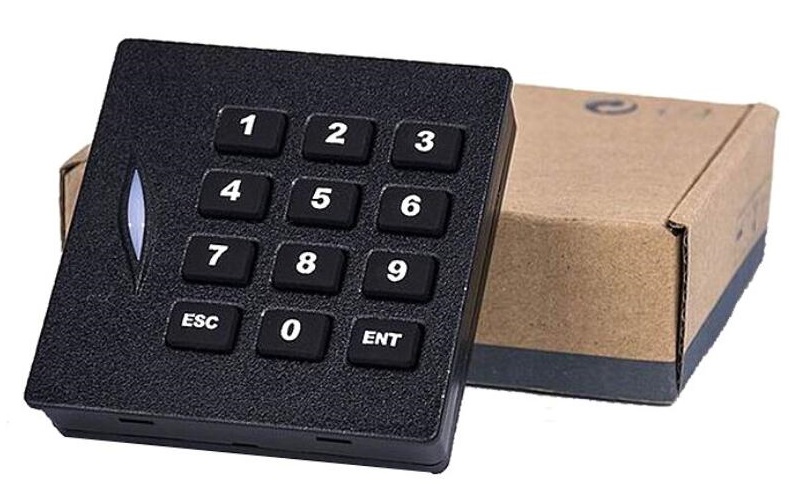

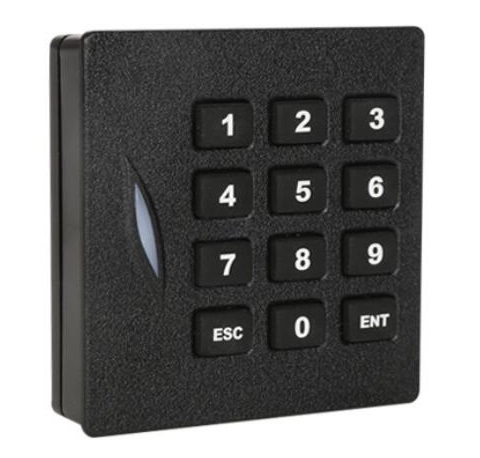

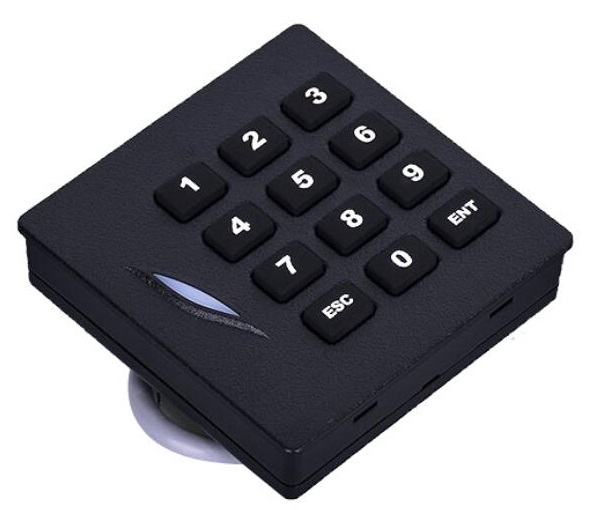

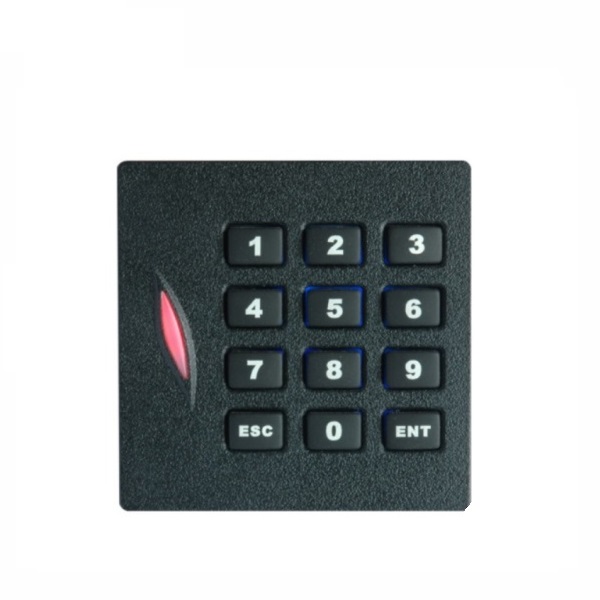

125KHz Proximity 13.56Mhz Wiegand Waterproof RFID Reader
This product is made of ABS and PC , Proximity card (EM card, also known as ID card) or password to open the door, built-in highly integrated microcontroller, simple circuit, safe and reliable, economical and durable, suitable for office, villa etc.
Features:
.125KHz Proximity /13.56MHz mifare Card Reader
.Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
.26/34bit Wiegand (default)
.Easy to install on Metal Door Frame or Mullion
.External LED Control
.External Buzzer Control
.Indoor / Outdoor Operation
.Solid Epoxy Potted
.Waterproof IP65
.Reverse Polarity Protection
