Item Number: HMT-PSS5A
Current: 5A, 3A Optional
Voltage: DC12V,AC220V, AC110V Optional
Color: white
Frequency: 50-60hz

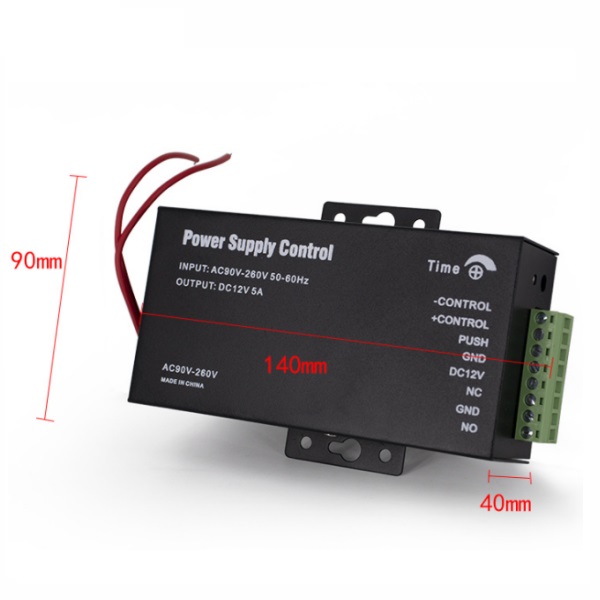

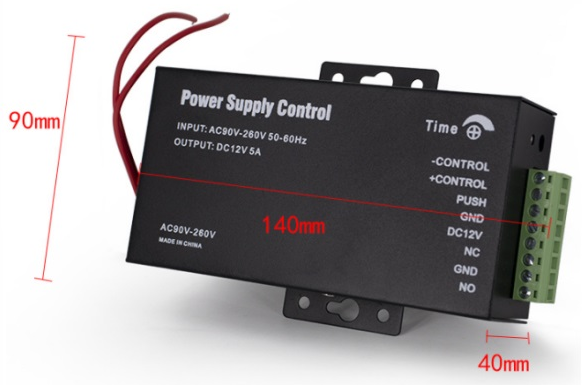

Size: 140 x 90 x 40mm
Logo: Custom
Function: Supply Power for Access Control
Weight: 0.5kg
Product Description
12V 5A Switching Access Control Power Supply For Door Access System
Features:
1. For access control system/intercom system
2. Short-circuit protection,over current protection and overload protection
3. Time delay: 0-30S adjustable
4. Support NO, NC electric lock
5. Support card reader,exit button,backup batteries
6. CE & RoHS Approved
Specification:
Model Number: HMT-PSS5A
Size: 140x 90 x 40mm
Input Voltage: AC220V, 110V Optional
Output Voltage: 12VDC
Output Current: 5A, 3A Optional
DC Output Power: 30~50W
Operating Humidity: 20%- 90% RH
Operating Temp: -20°C~+60°C
Adjustable Time Delay: 0- 30S
Weight: Approx. 0.5 kg

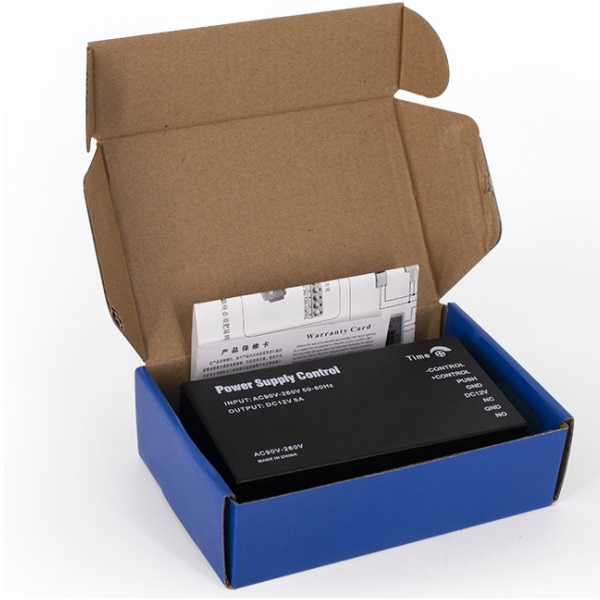

Standard Packing: 12pcs
