Item No: HMT-M180C
Holding force: 180Kg/350Lbs
Material: Aluminum
Voltage: 12V or 24V
Application: Can use to access control
Face plate Housing: Zinc plated
Suitable door type: Steel/Metal/Wooden/Glass Door
Feature: Fail Safe,
Product Description

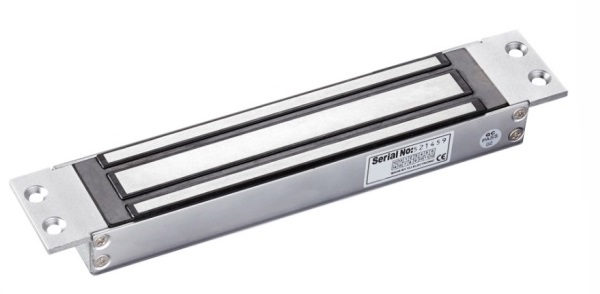

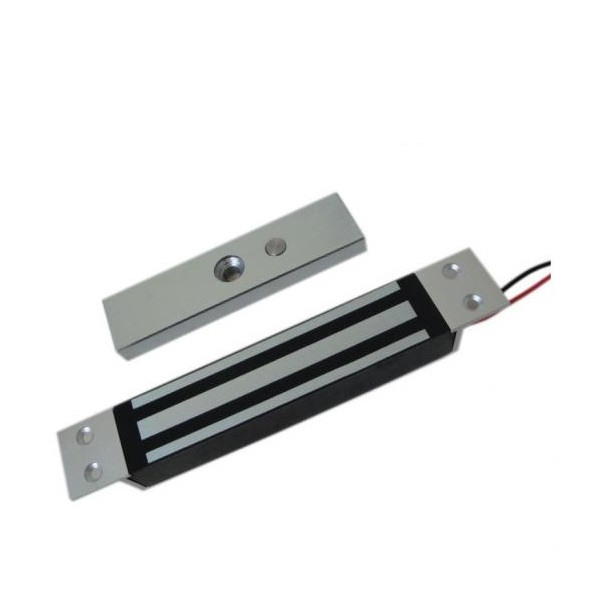

180KGS/350LBS Access Control Electric Concealed Magnetic for Single Door Lock

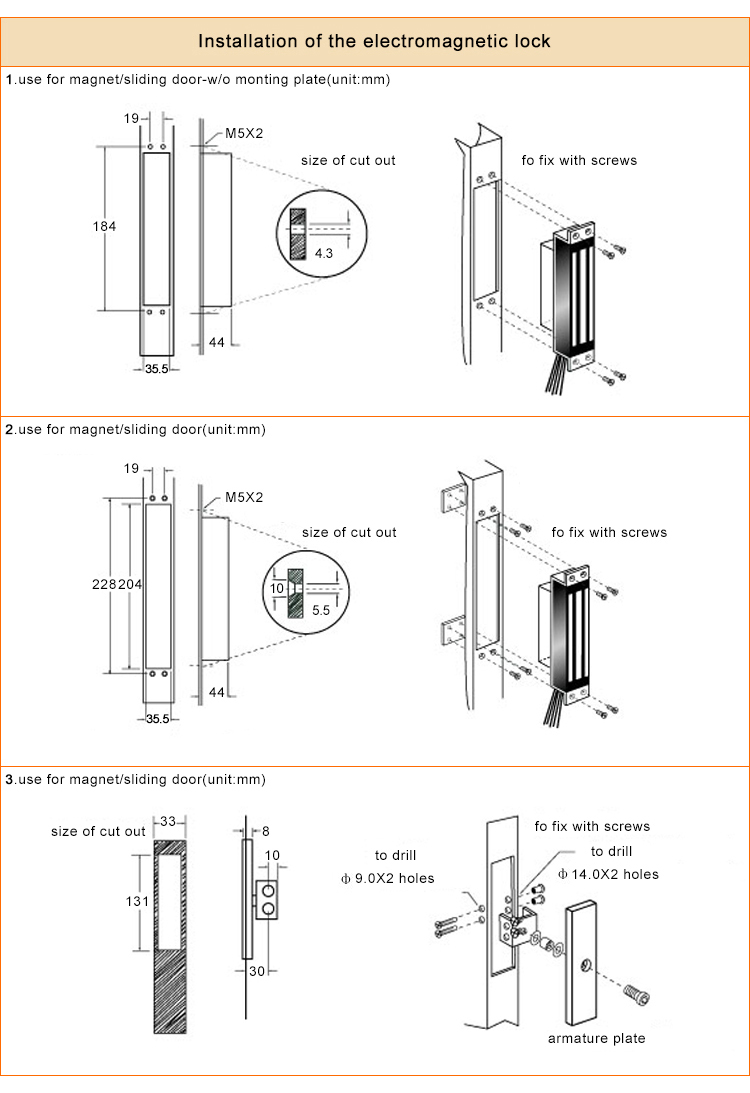

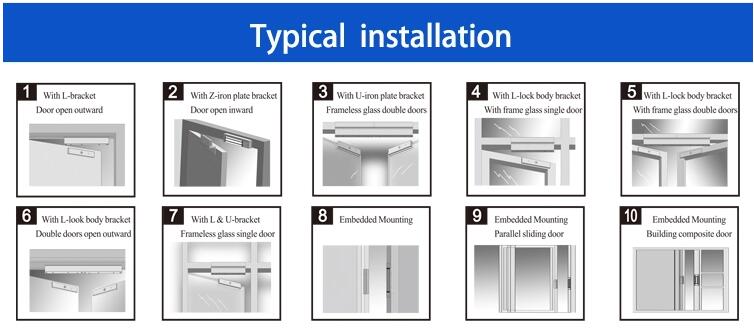

Single door magnetic lock saves time and power when installation.Inward door, frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Product Parameter
Lock Size: 190Lx31.5Wx22.5Hmm
Holding Force: 180kg (300Lbs)
Input Voltage: 12/24VDC Dual Voltage
Suitable for door: Wooden door , Glass door ,Metal door , Fireproof door
Singal Output: Lock singal Status NO/NC/COM/+/-
Feature: Fail Safe,
LED: Red shows unlocked, Green shows locked
Weight: 1.4kgs
Certification: CE /MA
