Item No: HMT-M180W
Holding force: 180Kg/350Lbs
Material: Aluminum
Voltage: 12/24VDC Dual Voltage
Application: Can use to access control
Face plate Housing: Zinc plated
Suitable door type: Steel/Metal/Wooden/Glass Door
Waterproof: IP68
Product Description

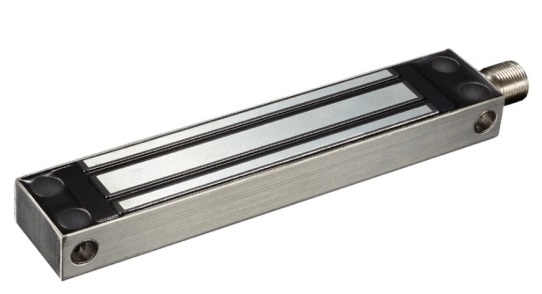

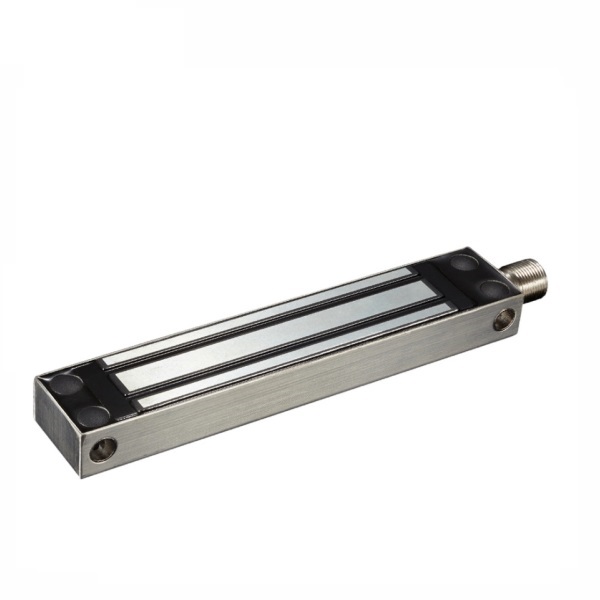

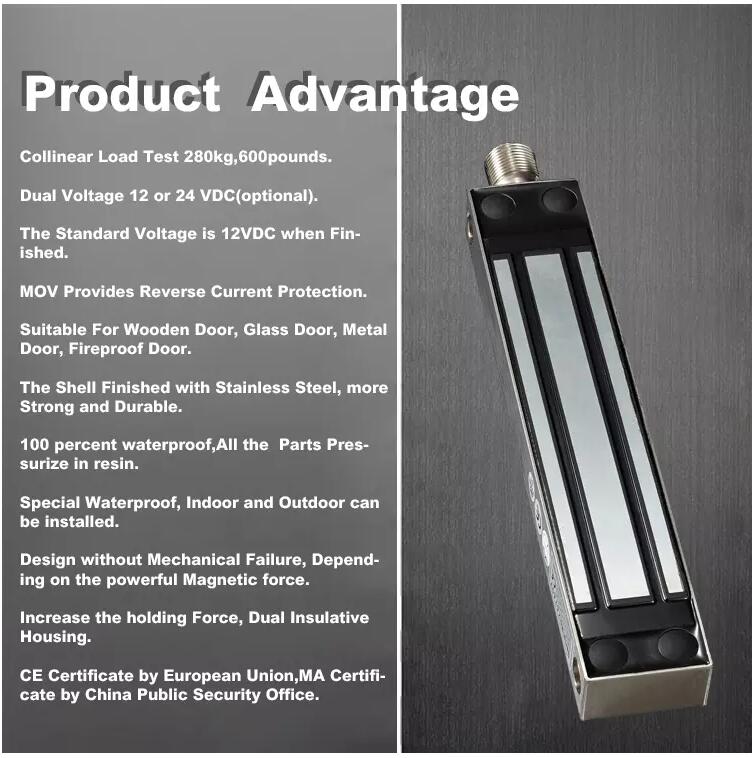

180KGS 350LBS Stainless Steel Waterproof Electric Magnetic lock
Product Parameter
Lock Size: 170*42*21mm
Holding Force: 180kg (350Lbs)
Input Voltage: 12/24VDC Dual Voltage
Suitable for door: Wooden door , Glass door ,Metal door , Fireproof door
Singal Output: Lock singal Status NO/NC/COM/+/-
Feature: Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
LED: Red shows unlocked, Green shows locked
Weight: 2kgs
Certification: CE /MA
