Item No: HMT-EB05A
Size: 86*86*28mm
Material: Aluminium Alloy
Current: 3A
Application: Can use to access control
Product Description

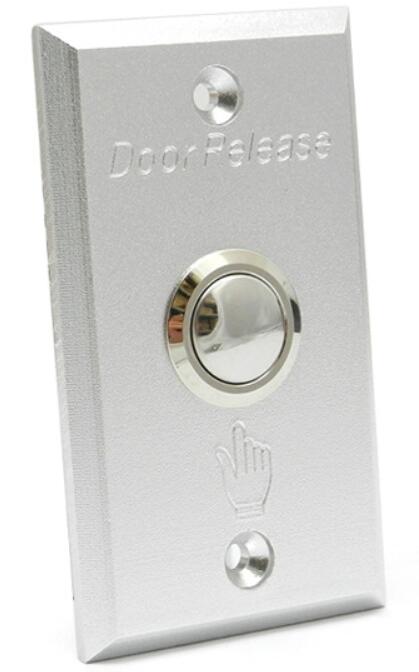

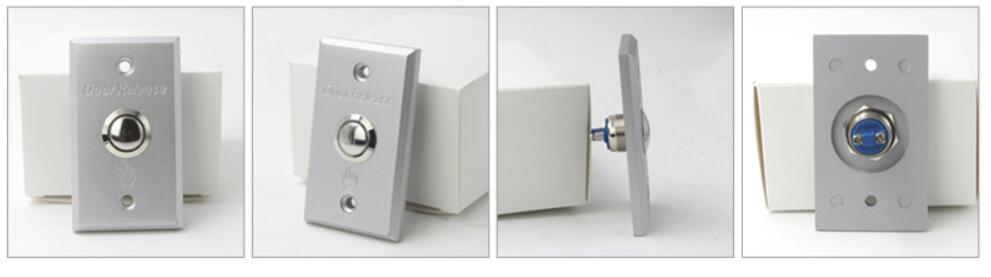

Cheapest Access Control Aluminium Alloy Door Release Exit Button
Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprises, department stores and residences etc.
Product Parameter

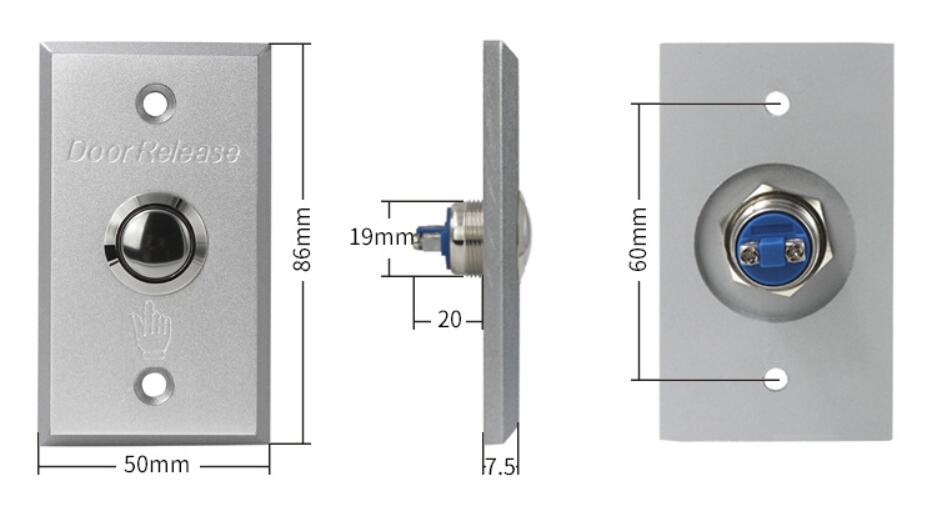

Dimensions: 8.6W x 8.6H x 2.8D (cm)

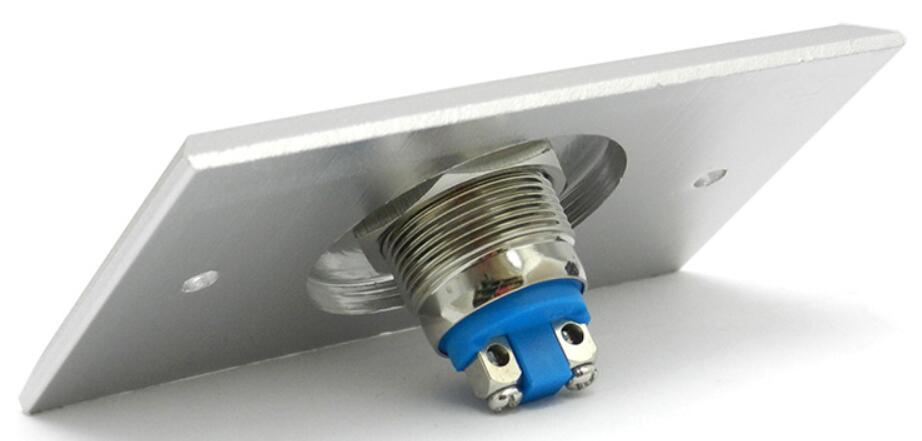

Standard Structure: Aluminum alloy Panel, Steel Button
Current Rating: 3A@36VDC
Output Contact: NC/NO/COM
Mechanical Life: 1000000 tested
Suitable for Door: Hollow Door
Operating Temperature: -10℃ ~ 55°C (14°F-131°F)
Operating Humidity: 0% ~ 95% (relative humidity)
Panel Material: Aluminum panel, Sandblast Finished
Weight: 0.16kg
