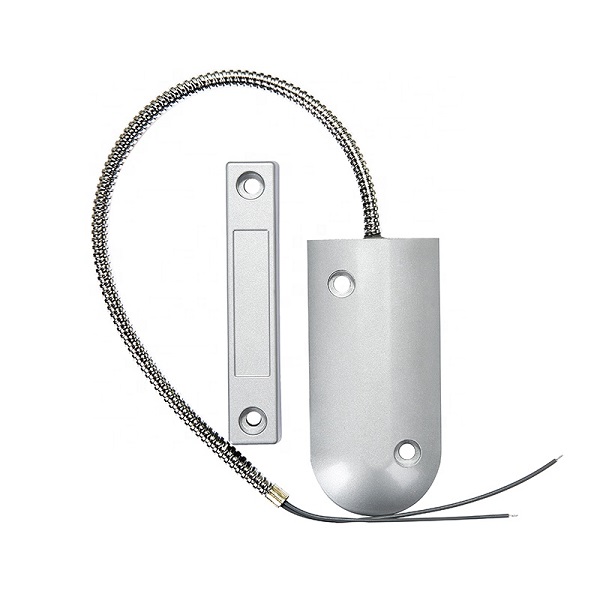

Item No: HMT-OC57
Dimension: 104*50*10mm & 107*20*17mm
Case Material：Zinc Alloy
Gap：50-70 mm
Output： NC/NO
Product Description
Item No: HMT-OC57

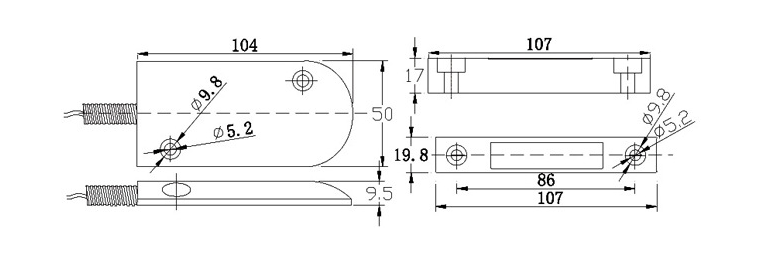

Product size: 104*50*10mm & 107*20*17mm
Case Material: Zinc Alloy
Sensing distance :50-70 (mm)
Installation: buried or surface type, with 380MM stainless steel protection tube
Connection: 22 # wire, 550MM
Current Voltage Power: 0.5A/100V/10W

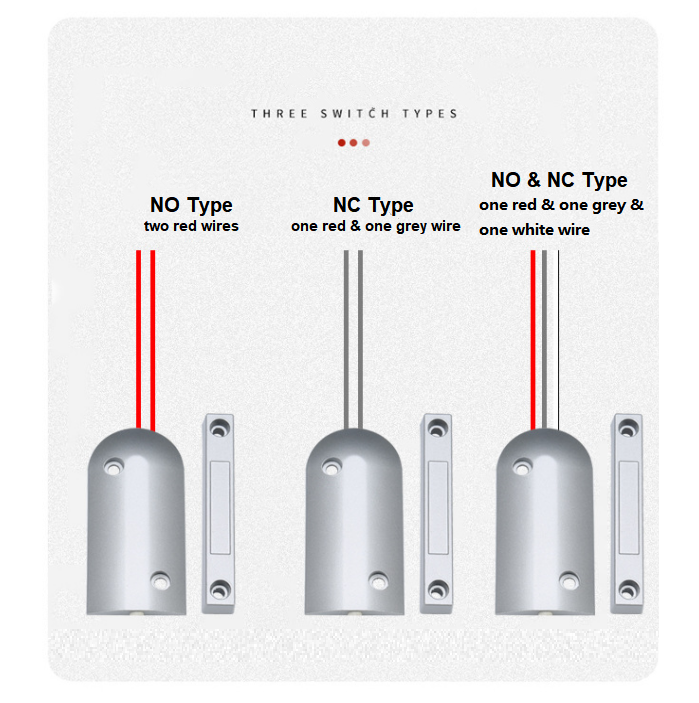

Note: NO —- normally open (path alarm)
NO & NC — normally open normally closed (this note two, can provide)
Package:1 sets/bag,100 sets/carton
