Item No: HMT54-UHF
Reading range: 0~3.5m (could adjust)
Communication Interface: RS232, Wiegand 26/34, RS485, Optional TCP/IP, RJ45, USB, WIFI etc
Frequency: 902~928 MHz(US Standard) or 865~868MHz(EU Standard)
Antenna: 3dbi Circular polarization antenna
Size: 95×95×40MM
Net Weight: 1.5KG
Mini UHF Long Read Range RFID Reader 3M HMT54-UHF
Product Description
UHF Long Range 3m RFID Reader For Car Parking System

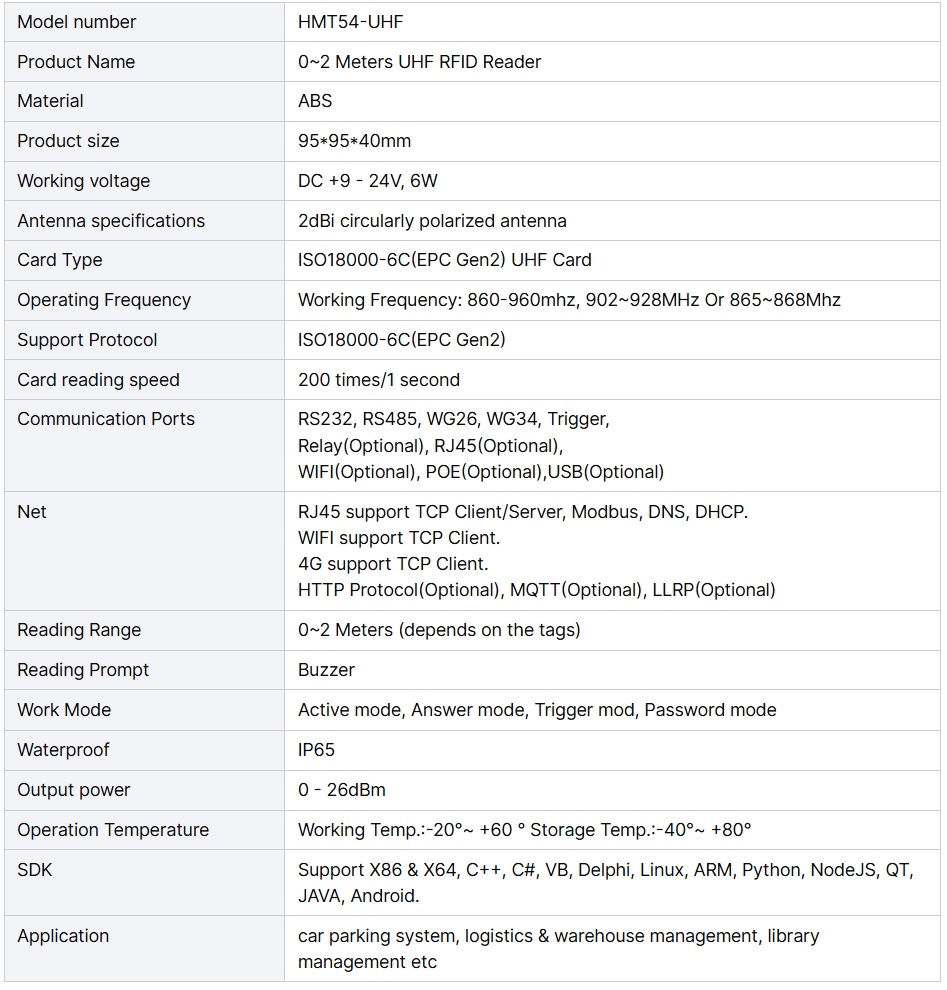

Specifications of UHF Reader
1.Fully support electronic tags that comply with the UHF EPC Gen2 (ISO18000-6C) protocol
2.Operating frequency FCC 902-928MHz, CE 865-868MHz (can be adjusted by software according to different countries or regions’ requirements)
3.Operate in broad-spectrum frequency hopping (FHSS) or fixed frequency transmission mode
4.Output power: maximum 26dBm (adjustable)
5.Built in 3dBi circularly polarized antenna, card reading distance range 0~3.5M
6.Support active mode, command mode, trigger mode, and password working mode
7.DC12V power supply, maximum support for 24V power supply

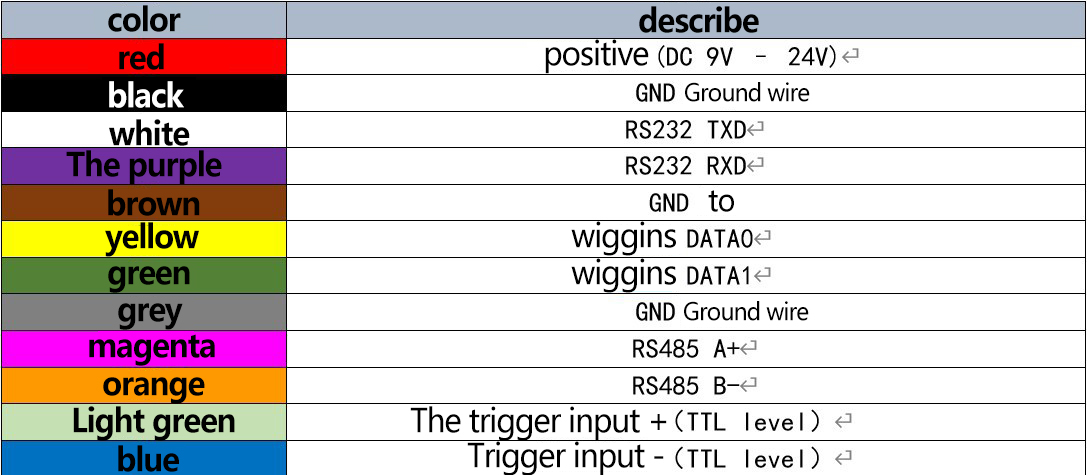

8.The communication interface supports RS232, RS485, Wigan, trigger (customizable relay, USB, RJ45, WIFI, 4G)
9.One relay (customized) can control high-power equipment such as speakers, motors, lights, etc
10.Supports ModBus protocol (limited to RS232, RS485, RJ45 interfaces only)
UHF Reader Applications:
