Item Number: HMT-Panel02
Control Doors:2 doors
Card Capacity: 20000
Communication: TCP/IP
Transaction Capacity:100000
Communication Protocol: TCP/IP
Panel size:160*106mm
Wiegand Protocol: Wiegand 26 , Wiegand 34
Standard Interface:Card reader*2, Lock*2, Door sensor*2, TCP/IP port*1, Exit button*2
Indicator:Color LED Indicator

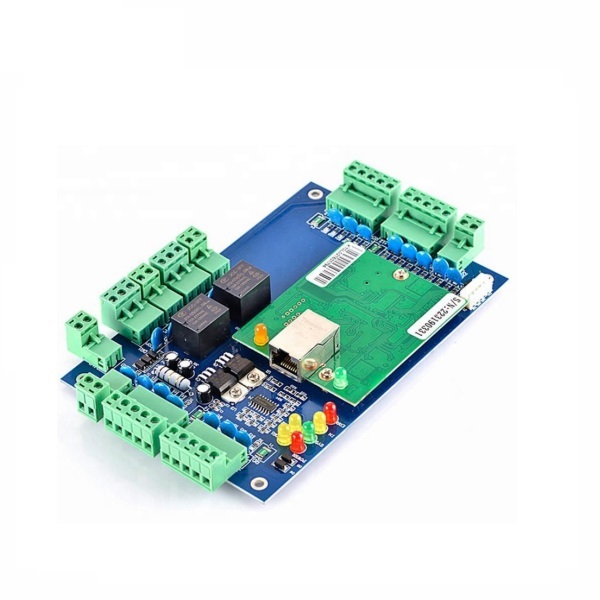

Access Control Board For Two Doors HMT-Panel02
Product Description
Network Access Control Board Panel For Two Doors
Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports… Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code…Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
