Item No: HMT-NB18AL
Size: 86Lx86Wx12H(mm)
Material: Tempered glass panel
Color: black, white
Contact Rating: 12-24V,3A
Application: Can use to access control
Product Description
No touch Door Relese Exit Button For Access Control System

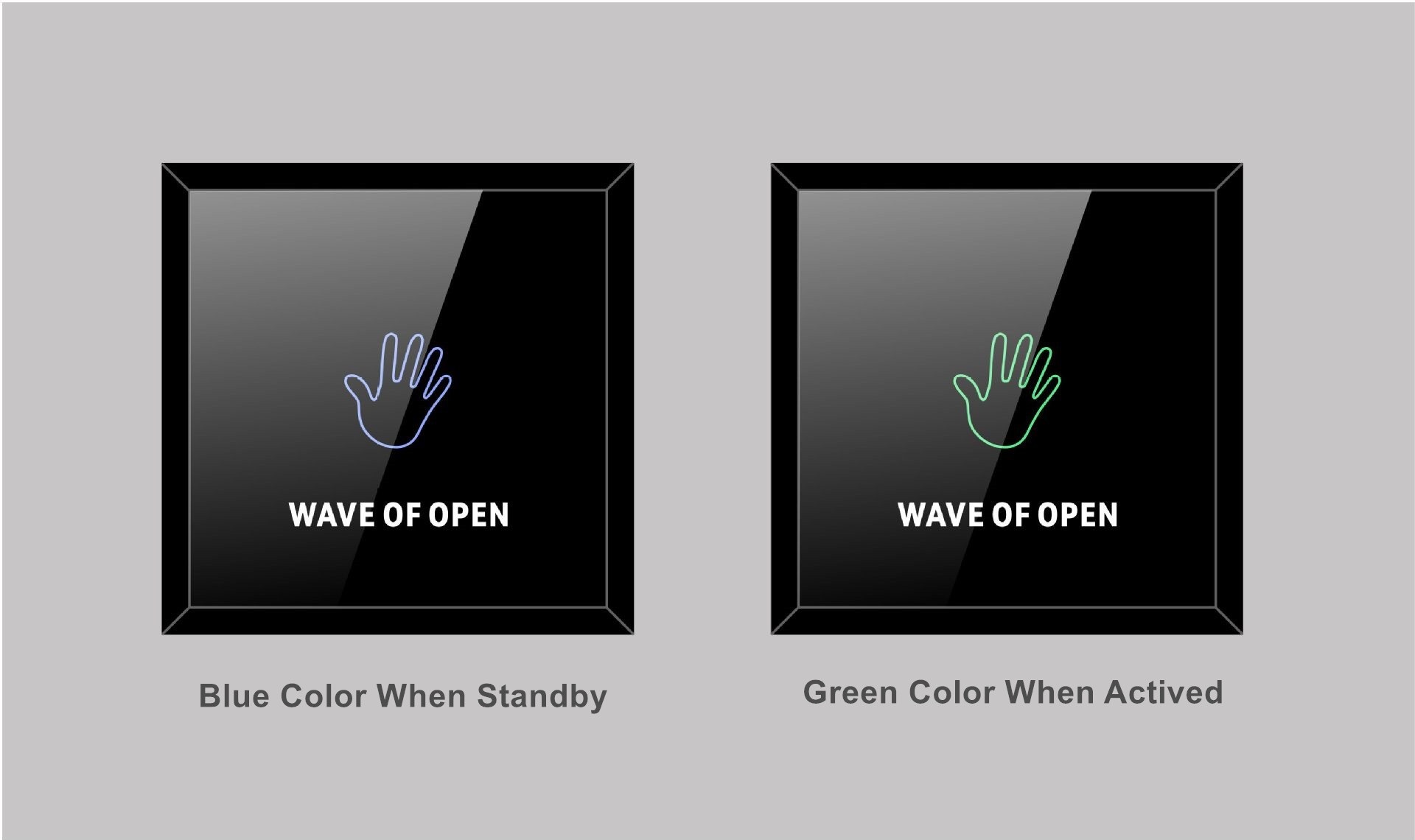

HMT-NB19AL is the luxurious Adjustable Infared No Touch Sensor Door Release Button Switch with Standard DC12V. Blue light for standby and green light for active. Its sensing distance is 3~30cm adjustable. It is with Tempered glass panel.
Suitable for all kinds of Locks. The Best Choice for Access Control
Product Parameter:

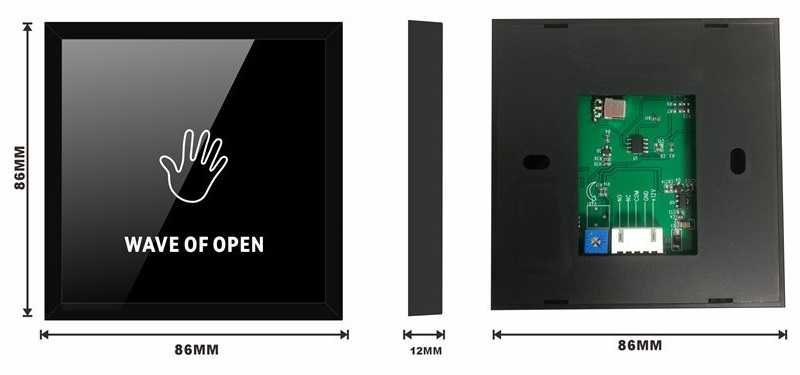

Dimensions: 86Lx86Wx12H(mm)
Standard Structure: Tempered glass panel
Current Rating: 3A@12VDC
Output Contact: NO/COM
Mechanical Life: 500000 tested
Suitable for Door: all doors
Operating Temperature: -10 oC ~ 50oC (14 oF ~ 131 oF)
Operating Humidity: 0% ~ 95% (relative humidity)
Panel Material: Tempered glass panel, wire drawing finished
