Item No: HMT-KP04
Size: 86Lx86Wx25H(mm)
Material: Plastic
Contact Rating: 12V,3A
Application: Can use to access control
Product Description

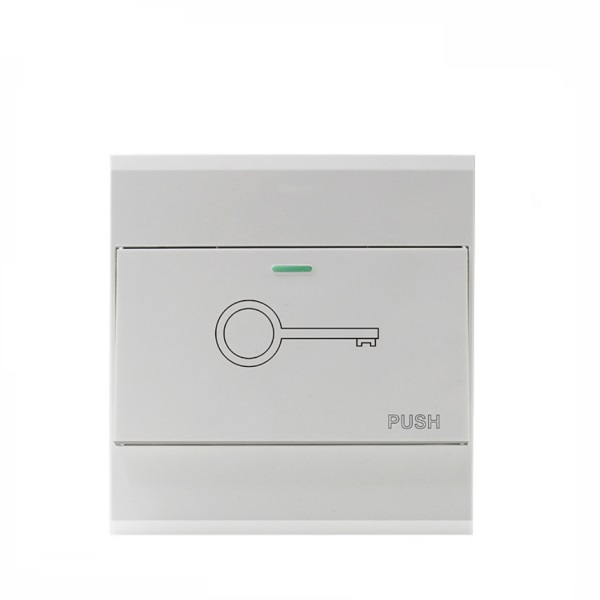

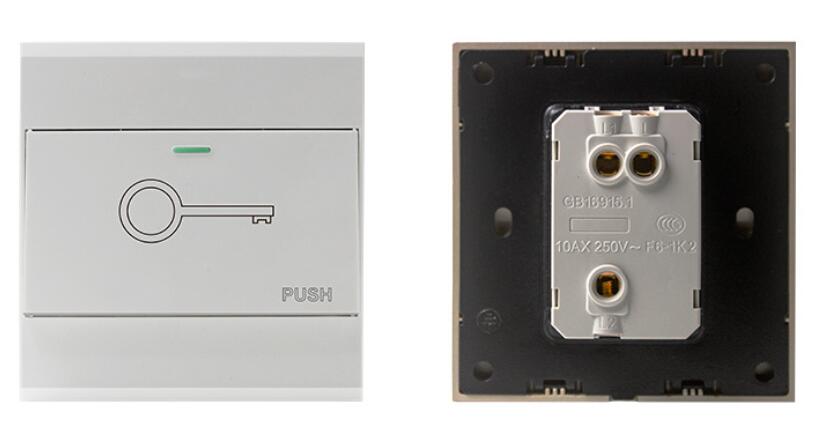

White Plastic Exit Release Button Switch For Door Access
Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprises, department stores and residences etc.
Suitable for all kinds of Locks. The Best Choice for Access Control
Product Parameter

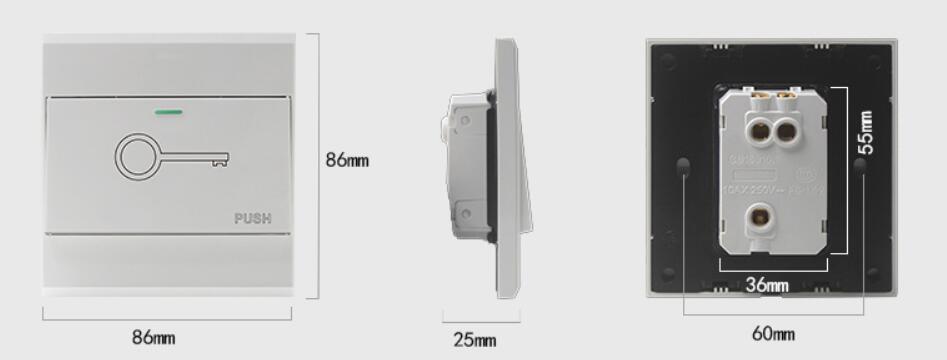

Dimensions: 86Lx86Wx25H(mm)
Standard Structure: Plastic,
Current Rating: 3A@12VDC
Output Contact: NO/COM
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Operating temp: -20℃~+55℃(14-131F)
Suitable Humidity: 0-95% (relative humidity)
Panel Material: Plastic, wire drawing finished
