Item No: HMT-EB1S
Size: 86*86*20mm
Material: stainless steel
Current: 3A
Application: Can use to access control
Product Description

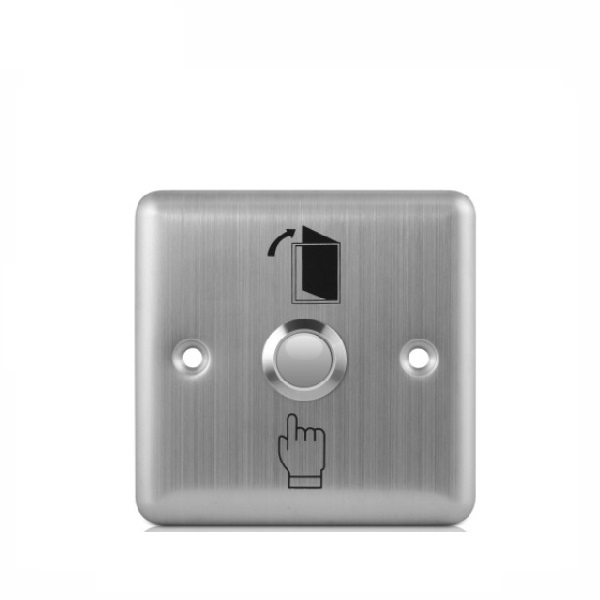

Cheapest Access Control Stainless Steel Door Release Exit Button
Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprises, department stores and residences etc.
Product Parameter
Dimensions: 8.6W x 8.6H x 2.0D (cm)

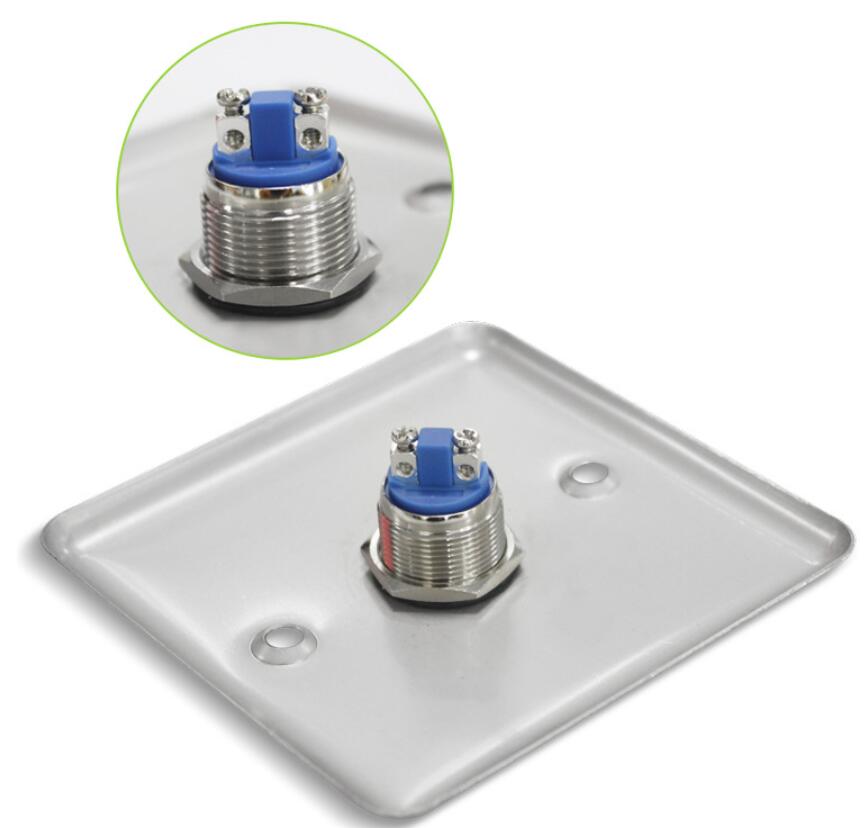

Standard Structure: Stainless steel panel, steel button
Current Rating: 3A@12VDC
Output Contact: NO/COM
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Operating Temperature: -10 oC ~ 50oC (14 oF ~ 131 oF)
Operating Humidity: 0% ~ 95% (relative humidity)
Panel Material: Stainless steel panel, wire drawing finished
Weight: 0.095kg
