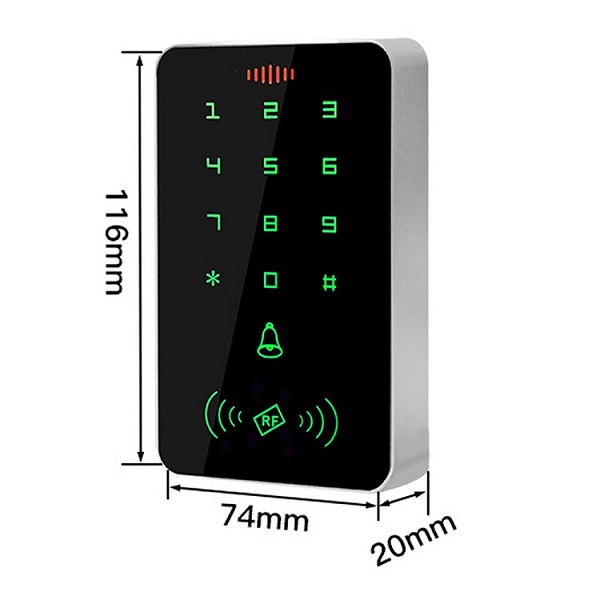

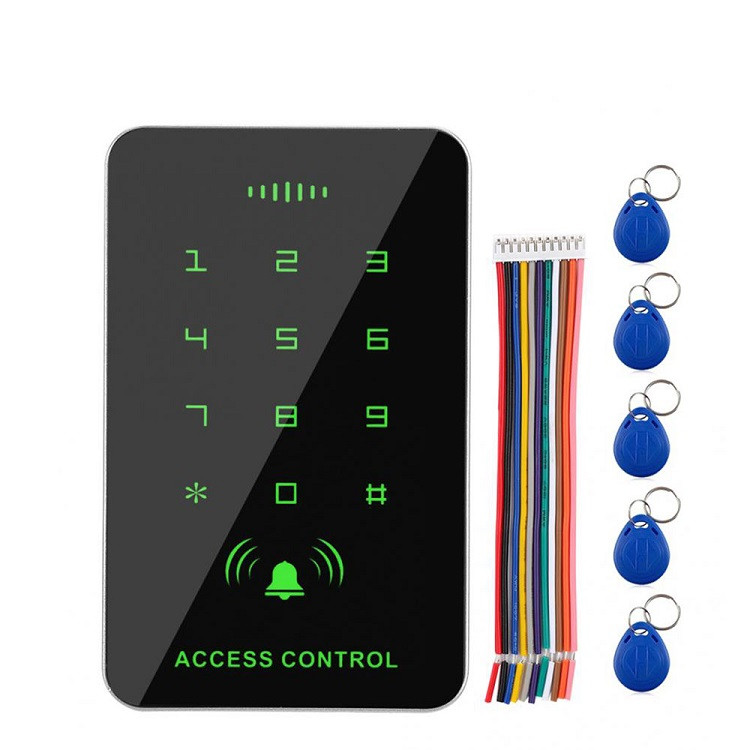

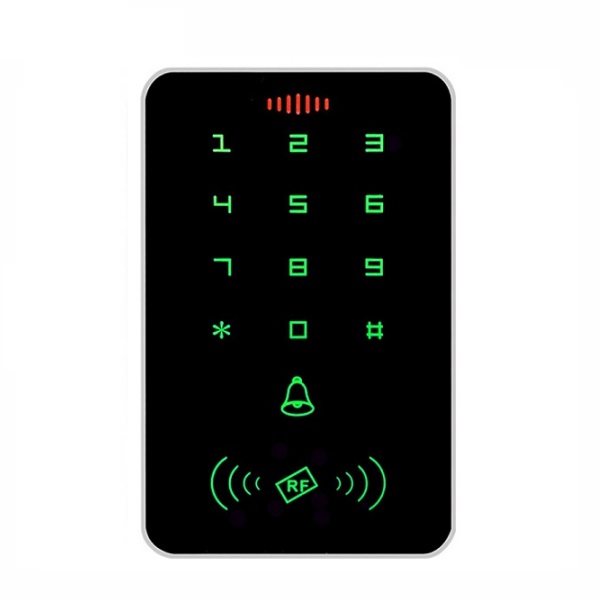

Standalone RFID Access Controller HMT-ST65

Product Description

RFID Standalone Door Access Control Card Reader With Keypad Design
This product uses high strength ABS plastic frame. , Proximity card (EM card, also known as ID card) or password to open the door, built-in highly integrated microcontroller, simple circuit, safe and reliable, economical and durable, suitable for office, villa etc.

























Technical parameters:
Working voltage: DC12±2V
Static current: ≤20mA
Operating current: ≤100mA
Relay contact current:≤3A
Working environment temperature: -20~50°C
Working environment humidity: 0~95% (no condensation)
Maximum card reading distance:5cm
Card capacity: 1000 user cards bound with 1000 user passwords, and the user can modify password by himself;
Opening door modes: card, card + PIN, card or PIN, PIN.
Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode;
Relay mode: release when normal or suction when normal;Built-in high-current MOS tube can directly drive the electric lock, and can resist strong magnetic unlocking;
Safe mode can be set: 10 times invalid card or password will automatically lock the machine for 10 minutes; Can connect with an exit button, convenient to open the door from inside.
External doorbell: There is a doorbell button on the panel.
