Model No.: SN-9134
1. Product Name: TTlock Bluetooth Module SN-9134
2. Compliant with Bluetooth 4.0 BLE standard
3. Built-in antenna
4. Support intelligent door lock app for opening doors
5. Built in RTC clock chip

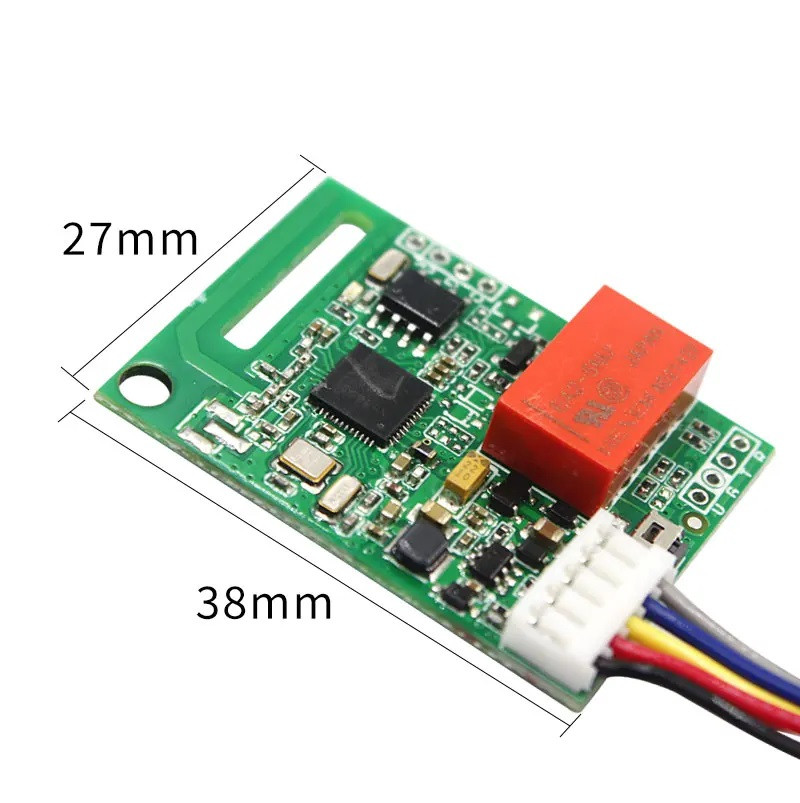

6. Dimension: 38 * 27mm (excluding lines)
7. APP: TTLock

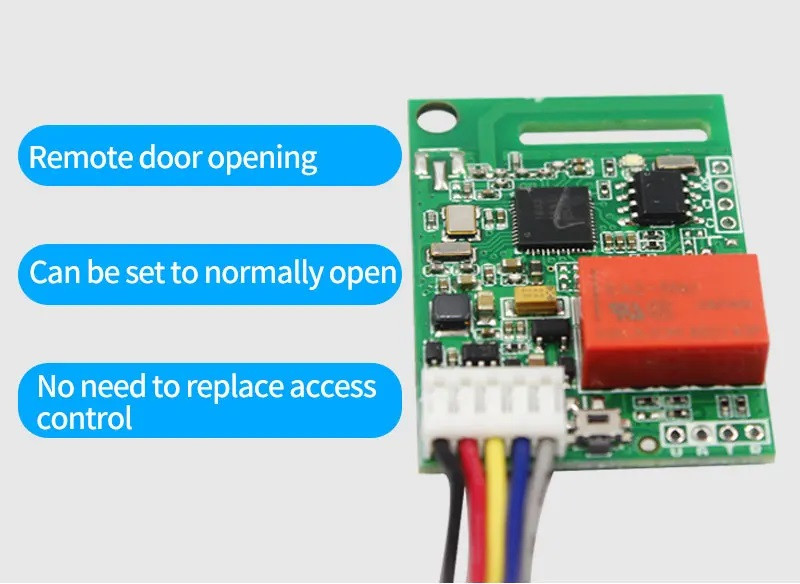

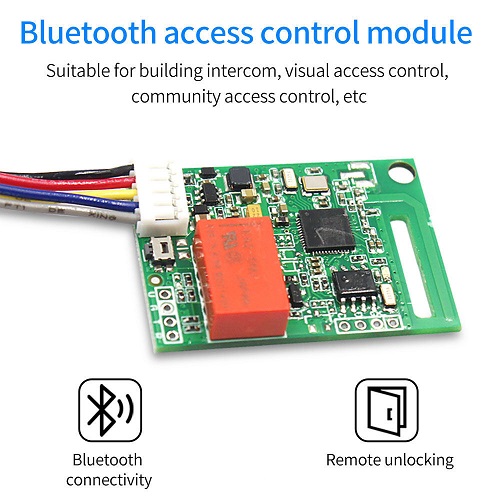

TTLock Bluetooth Module PCB Board SN-9134

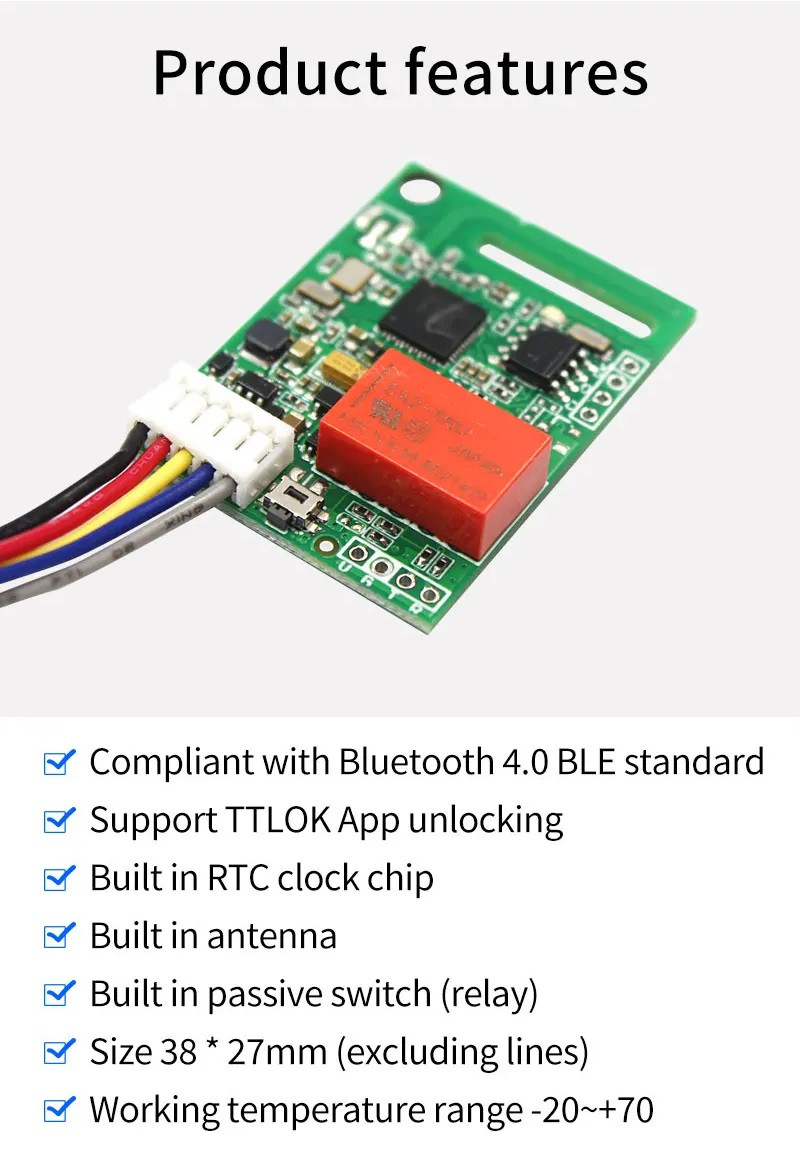

Product Description

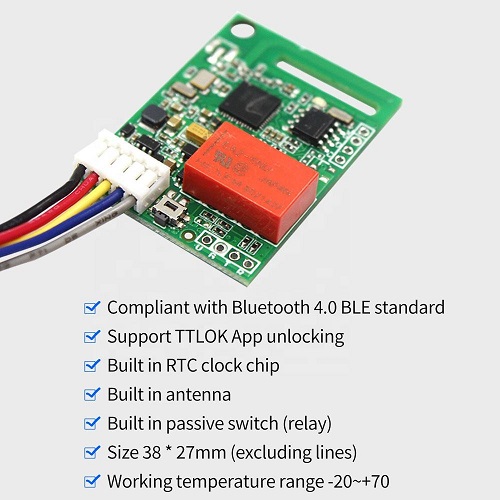

BLE Module SN-9134
* Compliant with Bluetooth 4.0 BLE standard

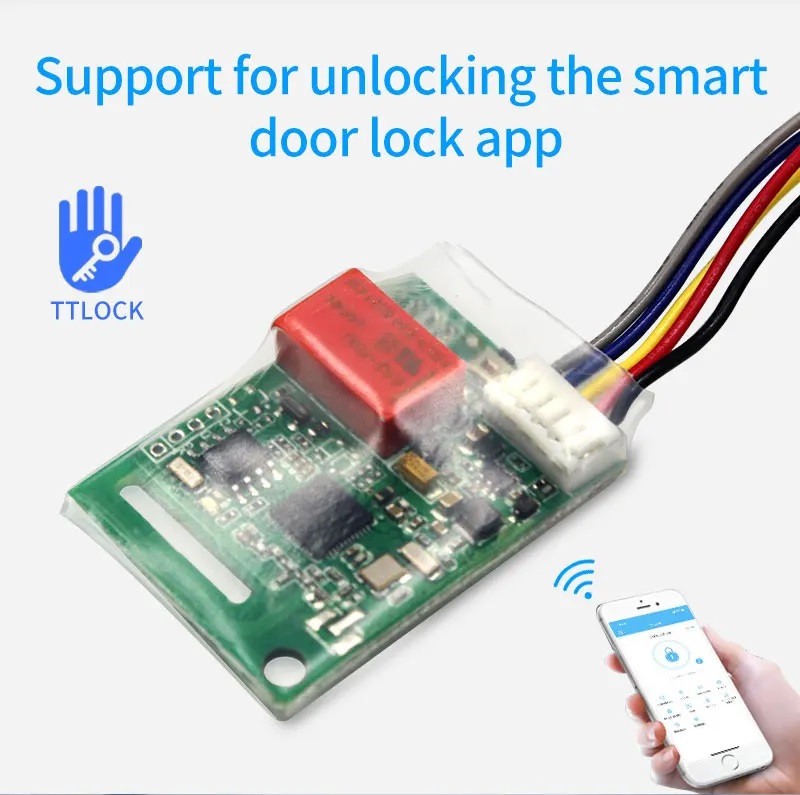

* Support intelligent door lock app for opening doors
* Built in RTC clock chip
* Built-in antenna
* Built in passive switch (relay)
* Size 38 * 27mm (excluding lines)
Note:
1.Below the minimum operating voltage, it may cause the module to malfunction Exceeding the maximum operating voltage may cause module damage
2.Generally, modules are in a sleep state and only switch to other states when unlocking with the app
3.Extreme environments can cause modules to malfunction
1.Below the minimum operating voltage, it may cause the module to malfunction Exceeding the maximum operating voltage may cause module damage
2.Generally, modules are in a sleep state and only switch to other states when unlocking with the app
3.Extreme environments can cause modules to malfunction
