Item No: HMT107-UHF
Reading range: 1~10m (could adjust)
Communication Interface: RS232, Wiegand 26/34, RS485, Optional TCP/IP, RJ45, USB, WIFI etc
Frequency: 902~928 MHz(US Standard) or 865~868MHz(EU Standard)
Antenna: 8dbi Circular polarization antenna
Size: 190×190×50MM
Net Weight: 2.5KG

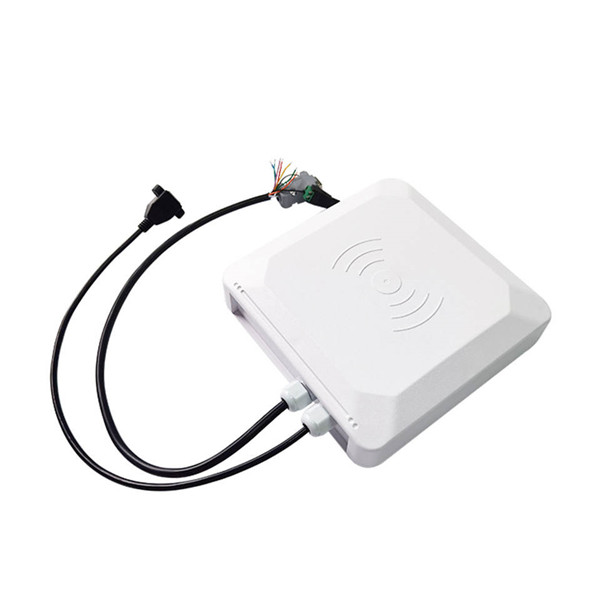

UHF Long Read Range RFID Reader 10M HMT107-UHF
Product Description
UHF Long Range 10m RFID Reader For Car Parking System

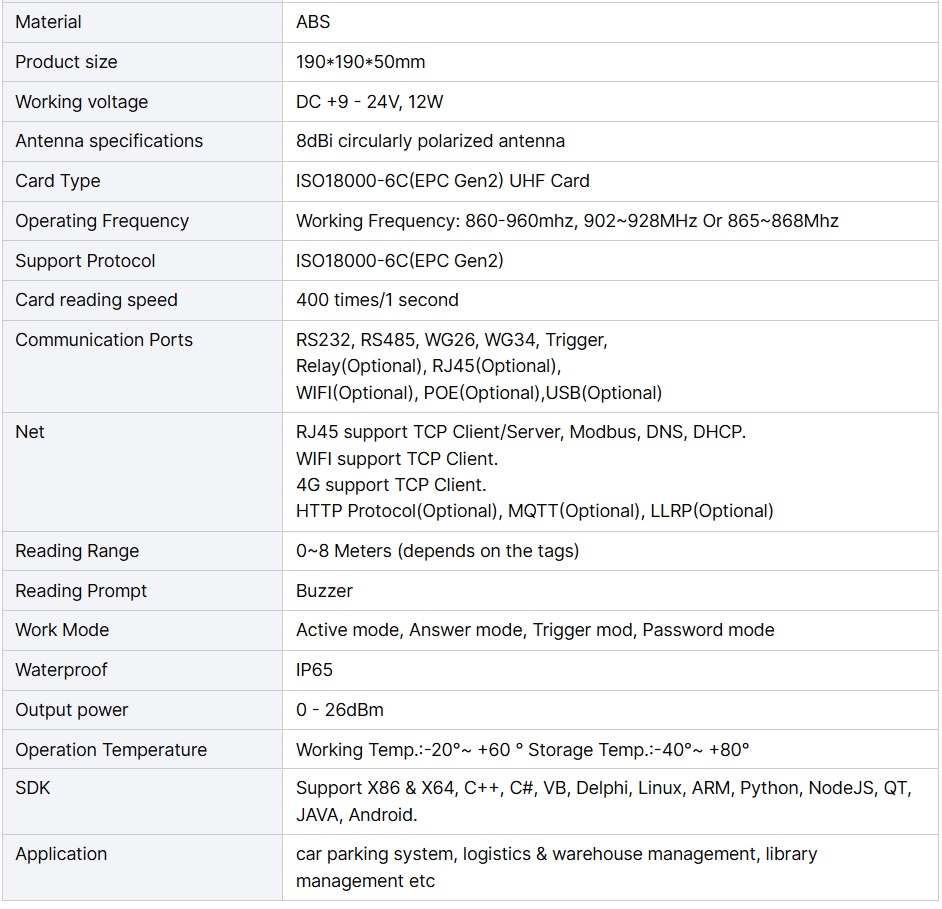

Specifications of UHF Reader
1.Frequency: 860~960MHZ
2.Fixing: Vertical (level 360 degree adustable,angle of gradient Max. 30 degree adjustable)
3.Transmit power: Max. 26dBm adjustable
4.Antenna: 8dbi linear polarization antenna (specially made)
5.Communication Ports: RS232,RS485,Wiegan26 , TCP/IP interface optional
6.Tag moves best speech: 120Km/h
7.Tag air interface: EPC Class1 Gen2 Standard. Note:(the reader c an be made to order compatible two kinds of protocol:the one is EPC Class1 G2 another is ISO18000-6B)
8.Highest data read rates: one by one single card
9.Recommend read range: 1~10M (conjunction with UHF RFID cards)

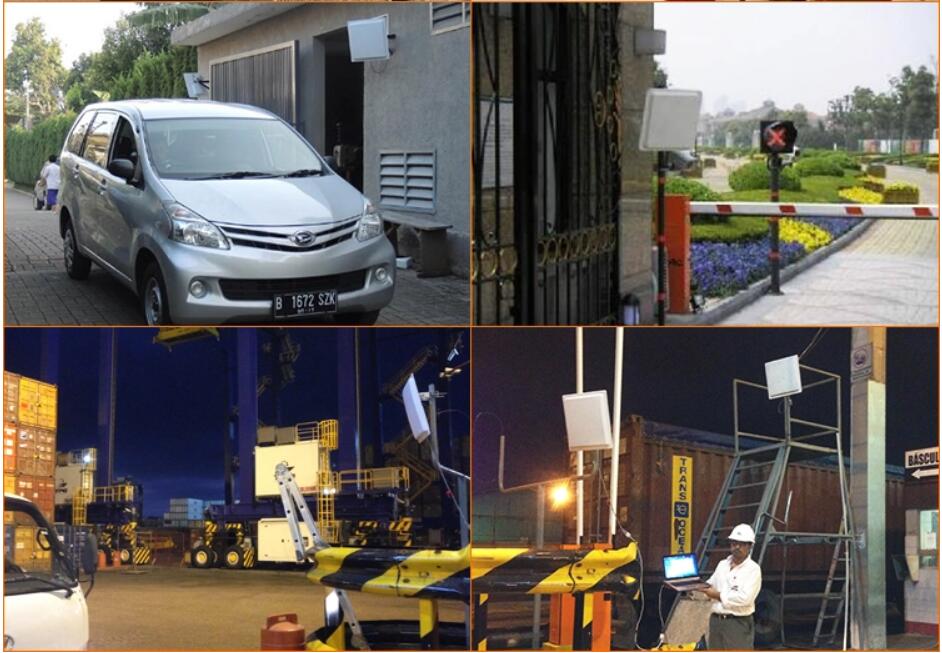

UHF Reader Applications:
