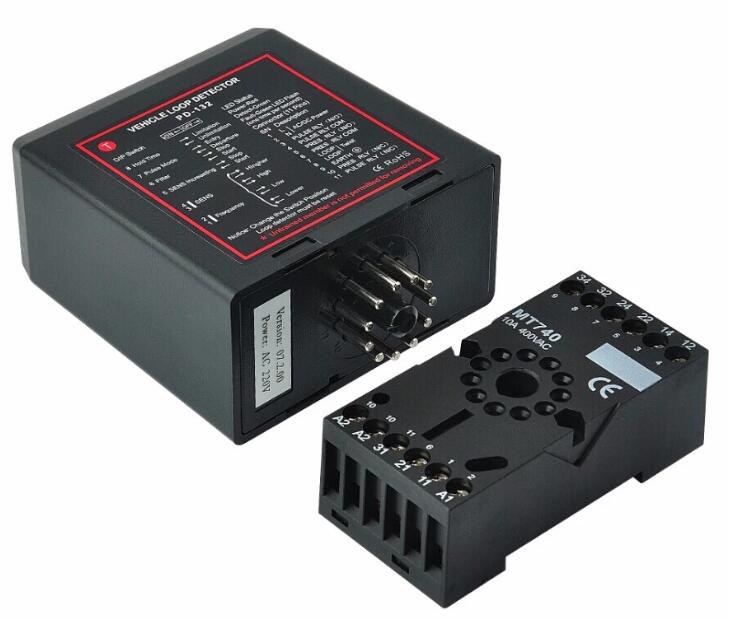

Vehicle Single Loop/Channel Detector HMT-LD03

Product Description

Vehicle Loop Detector Single Loop/Single Channel Detector

















Product features:

1. Compatible with parking management system.
2. Easy installation and operation.
3. Connects one inductive loop (single channel).
4. Application for Parking lot entrances Vehicle detection, Parking lot space information acquisition system, Electronic police traffic lights snap shot system, Traffic monitoring system etc.
5. Safe, beautiful, economic, comfortable.























Technical parameter:
Dimensions: L110mm x W60mm x H100 mm (Double channel)
L110mm x W60mm x H100 mm ( Single channel)
Power supply: DC12V/DC24V or AC220V/AC110V for optional
Power consumption: 5W as default
Output Mode: relay output
Operating temperature: -30 degree to 70 degree
Operating frequency: 20KHz to 170KHz
Installation: DIN lead rail
Connection: 11-PIN socket
Loop connection wiring: max x 100m, twisted at least 20 times per meter
Total resistance: less than 10ohm
Automatic calibration time: 2s to 5s
Reaction time: 20ms (fastest) double channel
10ms (fastest) single channel
Shell: PC+ABS engineering plastics
Net weight: 400g
