Item No: HMT-R03
Frequency:125KHz, optional 13.56Mhz, dual frequency 125khz & 13.56mhz
Interface: Wiegand 26/34 output, could customized change the output by remote
Read range: 0~3cm
Working voltage: 12V
Reader card speed: 0.1/s

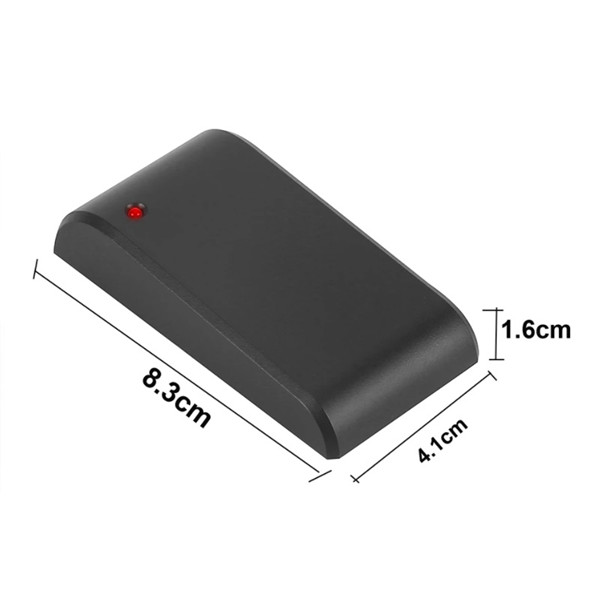

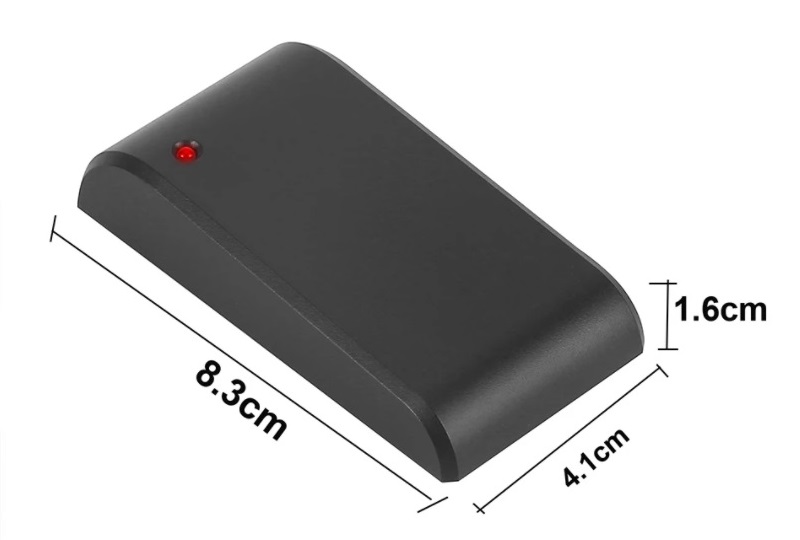

Size: 83*41*16 mm
Product Description
Features:
1. ABS shell
2. Very low power consumption, standby current less than 30mA
3. WG 26/34 output, could customized change the output by remote
4. Fast Search speed: time between reading card and opening the door is less than 0.1S
5. Waterproof level: IP68
HMT-R03-EM: 125KHz Proximity rfid card reader
HMT-R03-MF: 13.56MHz Mifare rfid card reader
HMT-R03-EM+MF: dual frequency 125khz and 13.56MHz rfid card reader
