Item No: HMT-M180D
Holding force: 360Kg/1000Lbs
Material: Aluminum
Voltage: 12/24VDC Dual Voltage
Application: Can use to access control
Face plate Housing: Zinc plated
Suitable door type: Steel/Metal/Wooden/Glass Door
Feature: Fail Safe
Product Description

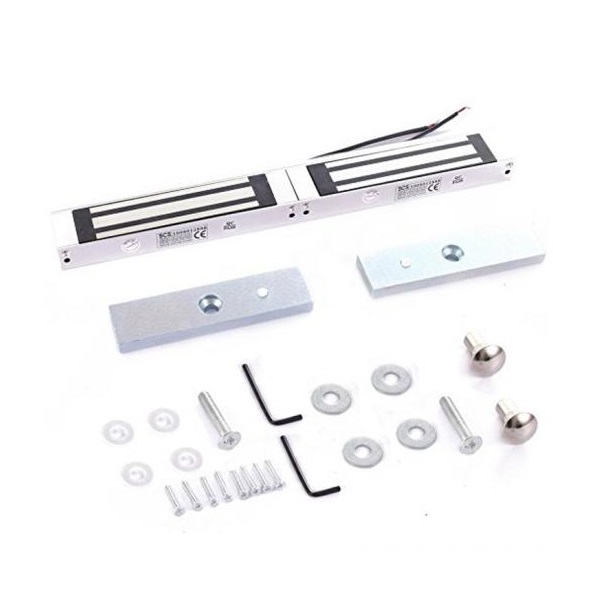

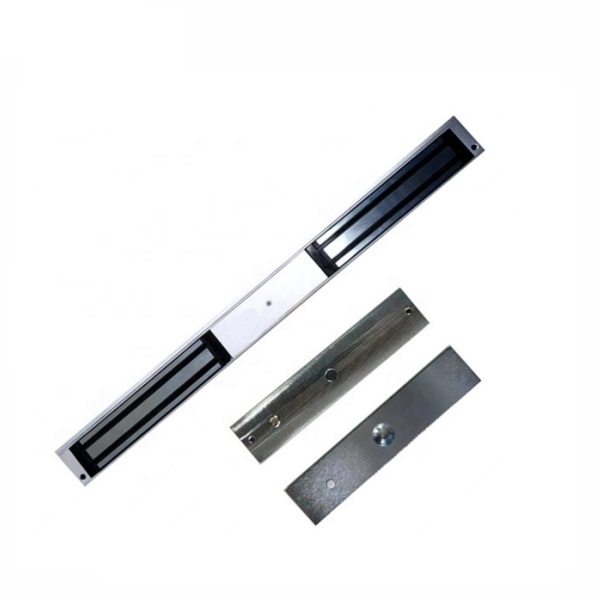

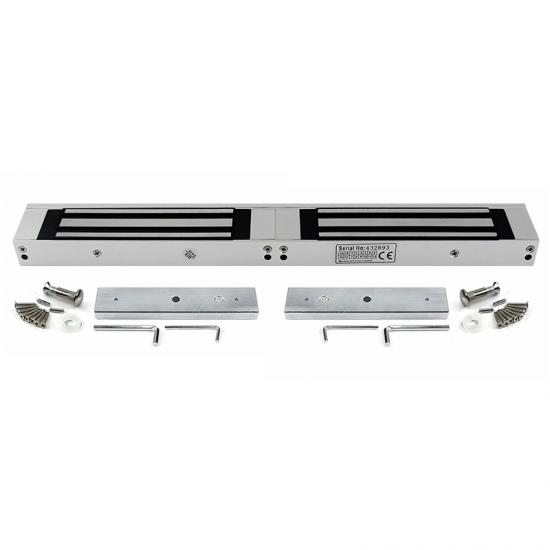

360KGS/1000LBS Access Control Dual Door Electric Magnetic Lock
Dual door magnetic lock saves time and power when installation.Inward door, frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Product Parameter
Lock Size: 420x40x21mm
Holding Force: 360kg (1000Lbs)
Input Voltage: 12/24VDC Dual Voltage
Suitable for door: Wooden door , Glass door ,Metal door , Fireproof door
Singal Output: Lock singal Status NO/NC/COM/+/-
Feature: Fail Safe
LED: Red shows unlocked, Green shows locked
Weight: 2.5kgs
Certification: CE /MA
