Item No: HMT-M60-24
Holding force: 60Kg/100Lbs
Material: Aluminum
Voltage: 24V/200mA
Application: Can use to access control
Face plate Housing: Zinc plated
Suitable door type: Steel/Metal/Wooden/Glass Door
Application: File Cabinet ,Disply Cabinet
60kgs/100LBS DC24V Electronic Magnetic Lock HMT-M60-24
Product Description

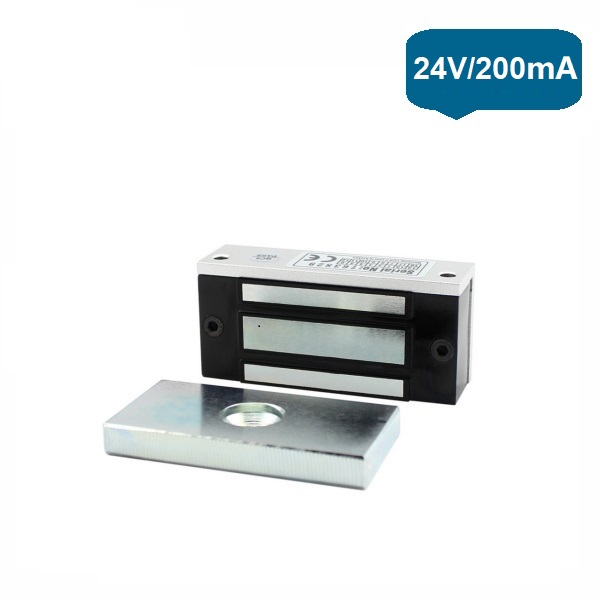

Mini 60kgs 100 lbs DC24V Electronic Magnetic Lock/Electromagnetic lock
Mini single door magnetic cabinet lock,special used to small cabinet door,like door window,storage cupboard.Saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Product Parameter
Magnet size: 80x38x25mm
Armature Plate size: 70x32x10mm
Operating Temp: -10~+55℃(14-131F)
Holding Force: 60kg(100Lbs)
Input Voltage: 24V/200mA
Suitable for door: File Cabinet ,Disply Cabinet
Armature Plate Finish: Zinc
Optional Functions: Lock Status Sensors,Relock Delay Timer,Buzzer
Weight: 0.5kg
